Affordable thermal system with curved design

MU3000 Plus Thermal

MU3000 Plus Thermal is MUSKITA’s longstanding, reliable cost-effective Sliding system available with thermal insulation. Combining elegant curved line design with easy installation and essential system versatility, MU3000 Plus Thermal is the perfect affordable solution for renovations or new constructions.

Technical Features & Solutions

  • MU3000 Plus Thermal is designed for mid-sized frame configurations with excellent air and water tightness, increased acoustic insulation and mechanical strength.
  • The system design concept is based on the utilization of a main profile for the frame and one profile for the sash.
  • The system covers all possible frame configurations, single, double, triple and quadruple sashes, with 90° mullion free closing and with or without fly screens. The system can also be concealed in walls and floors for a slim look.
  • MU3000 Plus Thermal is quick and easy to assemble and install, combining safety and functionality, without requiring high investment costs, making it ideal for renovations.
  • High security is achieved with multiple locking points and high-tech precision accessories. A variety of high quality handles, embedded handles and mechanism are available from MUSKITA, Giesse Italy and G-U Germany.
  • Thermal efficiency achieved by a thermal break system of 24 mm wide polyamides that thermally break the profiles.
  • Smooth rolling of sashes is achieved with high-strength primary aluminium alloy roller guides and rollers that can withstand a maximum weight of up to 200 kg per sash.
Back
Technical Characteristics
Rail Width
100 mm
Rail Height
49 mm
Sash Width
39 mm
Sash Height
80 mm
Maximum Sash Weight
200 kg
Glass Options
Up to 24 mm
Performance & Classification
Thermal Transmittance – Uw [W/(m2K)]
≥ 1.7
Sound Reduction
Up to 38 dB
Air Permeability
Class 4
Water Tightness
Class 6B
Resistance to Wind Load
Class B2
Finishes & Colours
Anodize
anodize
Powder Coating
powder
Sublimation & Wood Finishes
wood
Configurations
Double Track
double track
Triple Track
triple track
Quadruple Track
quadruple track
Corner Track
corner track

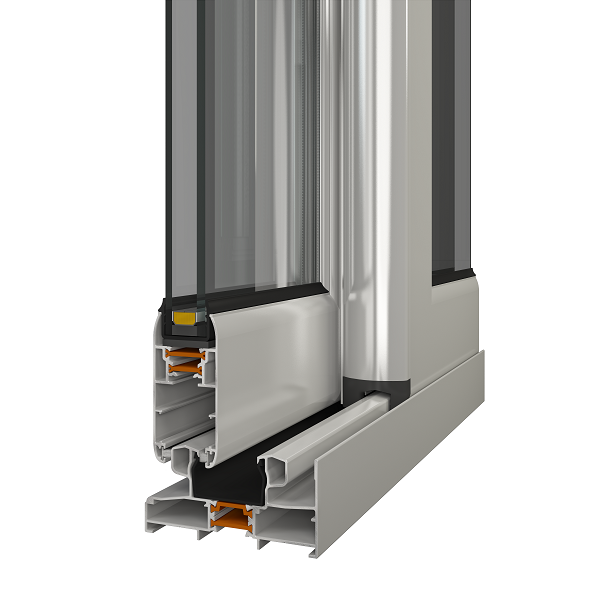

Cross Sections
1
